Transponder Alarm/Immobillizer Model D7600

3 Year Warranty

Alarm/Immobiliser - D7600

After over 150,000 units in the field, the engineers at Dynamco believe that we have completed our testing of the D3000 range of immobilisers and alarms. The new 7 series of units will be launched in April 2002, complemented with the tried and tested Australian/New Zealand's Standards.

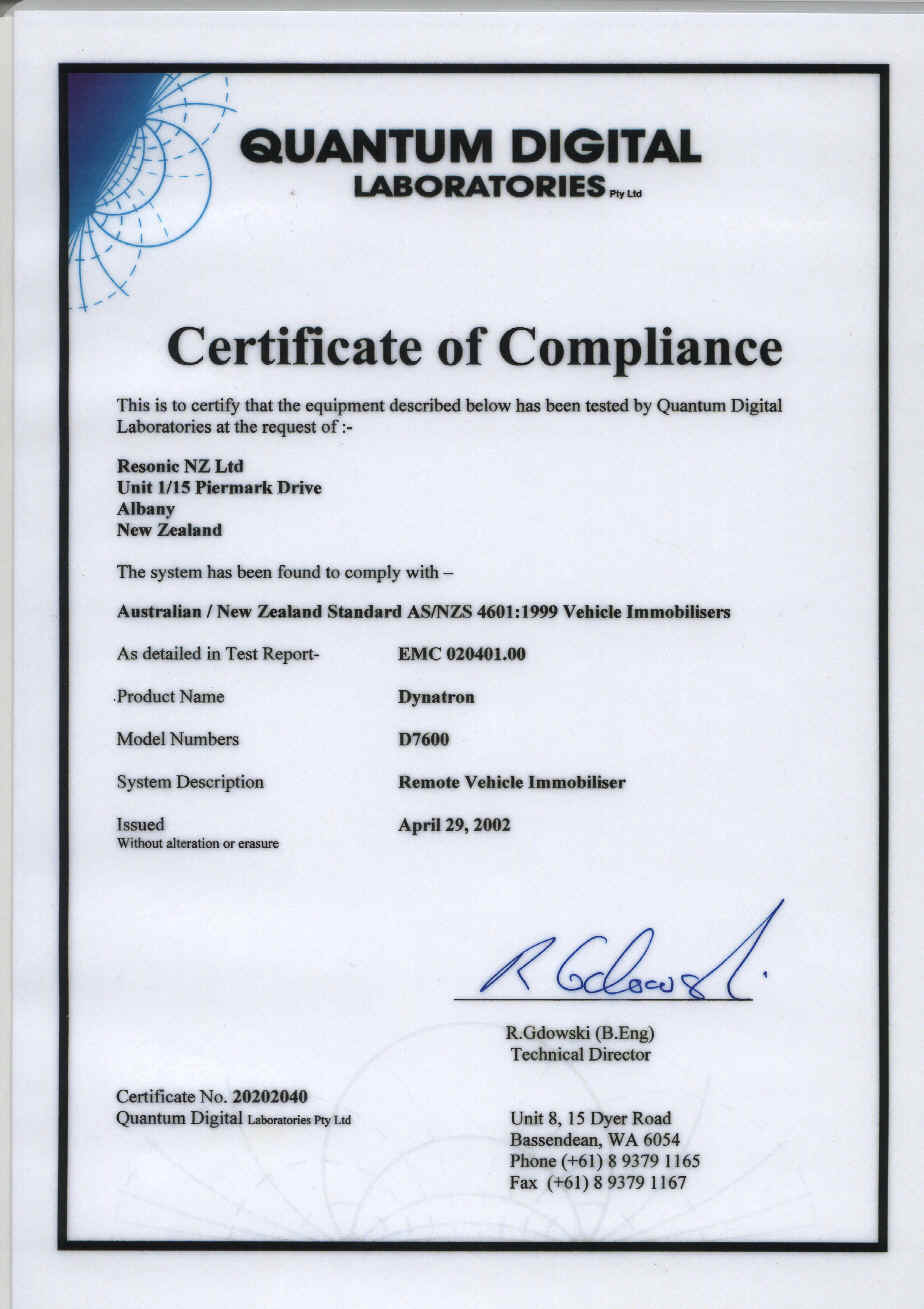

Like all DYNATRON alarm/immobilisers the D7600 is standards certified to AS/NZS 4601:1999. The D7600 certificate number is 20202040

D3600 vs. D7600
In addition to all the present features of the D3600, the D7600 will also have:

Transponder style disarm.
No chirp on auto immobilization.
No need to actively unset auto immobilization.
The unit has intelligent auto arm. Should the Immobiliser auto arm, which naturally does not lock the doors, pressing the remote control arm button, will lock the doors and arm the alarm (leaving the immobilisation active).
The unit will also warn the operator that the battery in the remote control is getting below 9v from 12v. It will display two flashes of the indicators when starting the vehicle.
Two plug in accessory sensor ports are now included
Door ajar warning on arming.
Full diagnostic information is now available giving information on the last 3 triggers. This info is retrievable via the remote control.
Ultra bright blue LED for transmit indication.
No need to use Emergency override PIN number if the battery fails in the remote.....just wave the remote at the ignition barrel and turn the key.
The boot can now be released and the alarm turned off at the same time by depressing the second button for more than 2 seconds.

The transponder is integrated into the remote control.

Interior light fades in and out during and after disarm.

DYNATRON FEATURES D7600

Code Hopping Random Encrypted remotes with 2 buttons with 4 functions.
Ultra bright blue LED for transmit indication.
The interior light on arm will dim out and slowly increase in brightness on disarm.
If connected to central locking the doors will lock on ignition turn on and unlock on ignition turn off.
Two sockets for both glass breakage and Shock, Attitude, Ultrasonic or Microwave sensors, are incorporated in the unit.
Full diagnostic information is now available giving information on the last 3 triggers.
This information is retrievable via the remote control.
The boot can now be released and the alarm turned off at the same time by depressing the second button for more than 2 seconds.
New long life battery operation.
Separate inputs for Doors, Boot Bonnet, Glass Breakage, Accessory.
Two independent circuits of immobilization via Siemens high quality relays.
Negative output on armed.
Auto Arming - 39 seconds after ignition turn off.
Automatic passive disarm of immobilization (built in Transponder type circuitry in remote control.
Intelligent auto arm If system has auto armed, the next push of the arm button locks the doors. (Saves pressing the button twice for door locks)
Auto lock. Doors lock on ignition On and unlock on ignition Off. (Installer selectable)
Auto Re-lock. If immobiliser disarmed and doors unlocked, doors will relock and immobiliser re-arm if no doors are opened within 120 seconds. (Installer selectable)
Indicator confirmation for arm/disarm/
Confirmation chirps from siren.
Interior light dim out/brighten up on arm/disarm
All immobilization wires are via automotive spade terminals and have double wiring for safety.
High security 50,000 combination PIN override.
Panic/car locator feature.
Full diagnostic information available for last 3 triggers via remote control
Alarm/immobiliser/boot release via second button. 1.5 second push.
Temporary chirp disable via second button short depression.
Programmable central locking timing outputs (0.5 seconds or 3 seconds)
Unit can learn up to 10 different remote controls.
Turbo timer processor available. This allows an auto arming system to function with a turbo timer vehicle.
Manufactured in an ISO 9002 facility to AS/NZS 4601:1997.
