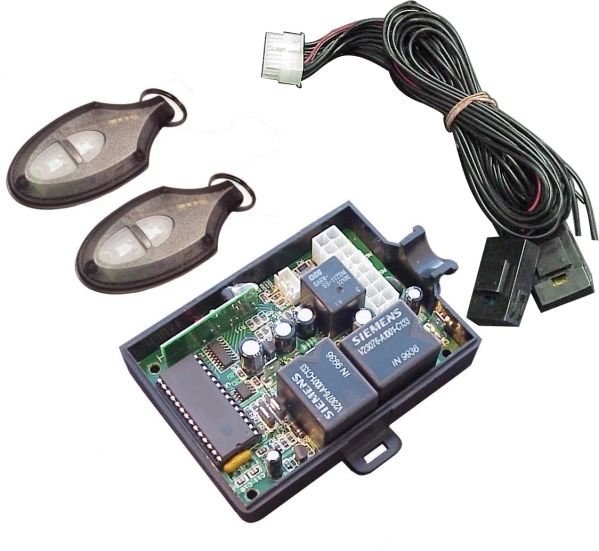

  • D3400 Immobiliser Alarm AS/NZS Certified 3 Star D3400 Immobiliser Alarm AS/NZS Certified 3 Star

D3400 Immobiliser Alarm AS/NZS Certified 3 Star

RRP: $ 249.00
Our Price: $ 150.00 incl. GST
Add Item to Cart

12 volt with Dual 40amp Open circuit Automatic Engine Immobilisers, optional alarm inputs with intelligent monitoring and fault diagnostics supplied with two encrypted rolling code remote controls.

Call 0800 508 904 for a qoute to intstall this alarm into your vehicle, either at our workshop in Albany Auckland, Auckland mobile install or Nationwide install.


Description

Forced entry detection for doors, boot and bonnet. Audible warning is pulsed through the vehicles horn, visual alerts via the vehicle indicators and a dash mounted red LED to indicate that the system is in an armed and operating condition. The system can provide keyless entry which is vehicle dependent.

The installation Price is standardised New Zealand wide and must be pre-booked through Dynatron by the purchaser and completed by a local Authorised installer at their business premises.

The DYNATRON D3400 is AS/NZS Certified.



Operation
Arming procedure while ignition is off: The system will arm immediately if the main button of a valid remote control is momentarily pressed, the doors will lock and all security functions will become active.
Disarming procedure: The system will disarm when the main button of a valid remote control is pressed
Auto Arming feature: The immobiliser will automatically immobilise the engine 39 seconds after the engine has stopped, if the vehicle is left untouched.
 Immobilisation
Two independent circuits of immobilisation: 40 Amp rated, normally open contacts.
Automatic immobilisation: 39 seconds after ignition switch is turned off.
Safety circuitry in case of power failure: System sources alternate power from ignition if main power is lost.
 On Board Relays

On-board relays:

Protection against harsh road conditions: All relays are fully encapsulated to provide protection against dust and moisture
Remote Controls

Rolling code encoder:

 With over 18,000,000,000,000,000,000+ code combinations, transmitting via 433MHz PWM RF signal.
Large system memory: Allows system to track seven controllers.
Two polycarbonate remote controls: Controller re-programming: Service technician can delete lost or stolen controllers from memory.
Wiring
Security wiring:  All cables extending from the module are black and same diameter.
Plug and play for service: Designed to allow easy access for service technicians.
Security Housing

Connector plug:

 Is enclosed within module case to prevent access by thief.
Stealth wiring: Cutting any immobilisation wiring will still leave the car secure.
Override
Emergency Personal Identification Number override: Enter the secret four digits to override the immobiliser .
PIN card: Secret override PIN is supplied on handy 90mm x 50mm card.
Visual Output

Bright red dash LED:

 This LED flashes to inform user when system is armed. The LED is mounted on the driver's side dash and is visible from outside the window.
Arm/Disarm confirmation:
 System flashes car indicators when arming or disarming.
Alarm illumination: System flashes car indicators when thief triggers alarm.
Audible Output

Vehicles horn:

 Negative horn output.

Arm/Disarm confirmation:

 Optional.
Intrusion Detection
Sensors Are OPTIONAL on D3400 Series

Doors, bonnet and boot monitoring:

 Triggers alarm system if intruder opens any protected entry point in vehicle.
Optional plug-in Glassbreak Sensor: Digital oscillating quartz glassbreak Sensor to detect the frequency of breaking glass.
Optional plug-in Ultra-Sonic:     Sensor produces a 40KHz sound wave and measures echo to detect intruder.
Optional plug-in Single Zone Microwave: Sensor produces a microwave field to detect intruders
Optional plug-in dual zone Microwave Sensor: Sensor produces two microwave fields, exterior field to sound siren as warning, interior to trigger alarm in full.
Optional plug-in single stage shock sensor: Sensor measures vibration subjected to vehicle to detect intruder.
Optional plug-in two stage Shock Sensor: Sensor measures two levels of shock, soft shock to sound siren as warning, heavy shock to trigger alarm in full.
Optional plug-in Tilt & Shock sensor: Dual tech Sensor measures vehicle angle with respect to static set position and triggers if angle changes. Additional ful response to impact and constant vibration.
Optional PIR Sensor: Sensor detects movement within confines of the vehicle using infrared transmission - especially suited to utility canopies and box vans. Not disturbed by air movement.
Central Locking

Locks and unlocks all doors:		 System can trigger factory central locking, aftermarket central locking or central locking relays.Extend pulse length to drive pneumatic central locking systems (Mercedes).
Automatic re-locking: System will re-arm and re-lock doors if previously disarmed by remote control and doors remain closed.

Anti-hijacking protection:

 System locks doors when ignition is turned on, unlocks when ignition is turned off.
Dual stage unlock: Allows user to unlock driver's door before unlocking all other doors.
Convenience Functions
Panic / Car Finder: Press and hold second button of remote control to cause siren to sound and indicators to flash.
Courtesy light switch activation:
System switches courtesy light on for 30 seconds or until ignition switch is turned on, when disarmed.
Electronic boot release. (Optional):
Press and hold the secondary remote control button, while system is disarmed, to activate boot release output. The indicators will flash four time each time the boot release signal is sent.
Warranty (Return to Base)
Manufacturers warranty on Control module: Guarantees control module is free from manufacturing defects for 3 years from time of purchase.
Manufacturers warranty on Sundry items: Guarantees remote controls, siren and sundry items are free from manufacturing defects for 12 months from time of purchase.

Standards Compliance
Australian & New Zealand Standard for vehicle Immobilisers. AS/NZS 4601:1999.
Australian & New Zealand Standard for Intruder alarm systems - Road vehicles - Performance requirements. AS/NZS 3749.1:2003 Class B.
Manufactured to ISO9001. Built within world standard production facility.
