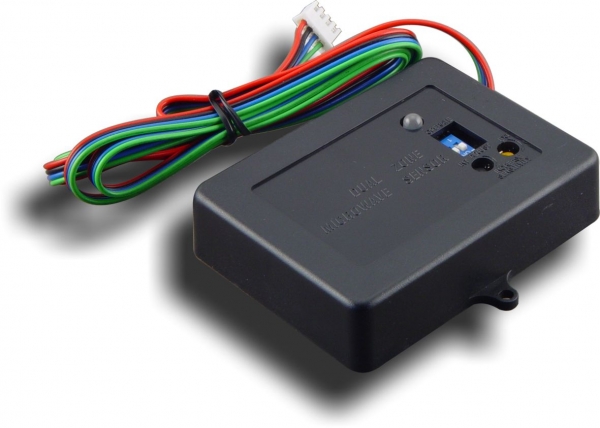

DYNATRON Single Zone Microwave Sensor

DYNATRON Single Zone Microwave Sensor

---

Description



Microwave provides active detection of body movement inside a virtual space and is ideal for open softop convertable configurations. Can be compromised by metal surfaces and metalic window film tint. May also detect water movement over glass surfaces and must be tuned to take these factors into consideration. Ideally located in the roof lining in hardtop applications, under the centre console with softtops.



Operation
Active Microwave Protection Field:	Sensor establishes a microwave field. Any measured change in the density of the field is determined to be an intruder.
Adjustable sensitivity:	Sensor allows installer to adjust sensitivity to provide compatibility within different size vehicles.
Temperature compensative circuitry:	Ensures sensitivity does not change as ambient temperature rises or falls.
Plug and play for service:	Designed to allow easy access for service technicians. Plugs and sockets are located inside the main control module to protect against access by thieves.
Compatability
Compatible with:	DYNATRON alarm control systems only
Visual Output
Trigger status indicator:	LED indicator shows when sensor is triggered.
Specifications
Low current draw:	9.07mA when idle, 21.95mA when triggered for 2 seconds.
Wide Operating voltage:	Operating voltage +9VDC to +15VDC.
Operating temperature:	-20 degrees to +85 degrees for equipment designed to be installed within vehicle cabin.
Polarity protection:	The system circuitry is design to protect itself against accidental battery polarity reversal. This can happen when replacing the vehicle battery.
Trigger output rating:	Each output of the sensor can sink 300mA, suitable for energising a relay coil when necessary.
Trigger output is back EMF protected:	Clamping diode protects the output driver transistor(s) to stop damage from the super high voltages that occur when a relay coil is released.
Can protect open top vehicles:	Microwave field will not detect air movement. The field provides it's own boundaries, so ideal for convertibles.
Limitations:	Microwave fields can not penetrate metallic surfaces, including metal foil and titanium window tints.
Power Consumption:	Each additional sensor added to a system will increase it's over-all power consumption from the car battery. See the list of each sensor's power consumption.
Warranty (Return to Base)
Manufacturers warranty on Sundry items:	Guarantees accessories are free from manufacturing defects for 12 months from time of purchase.
Manufactured to ISO9001.	Built within world standard production facility.
