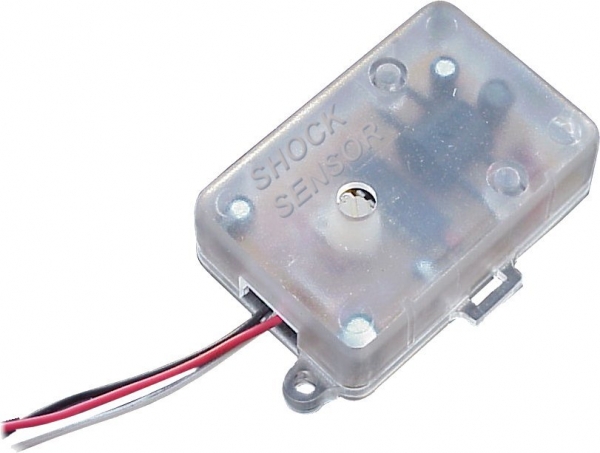

DYNATRON Single Zone Shock Sensor

Price: $ 49.95 incl. GST
Add Item to Cart

Single Zone Electro magnetic impact sensor.

Description

Electromechanical single zone impact sensor that activates the alarm upon impact against the body of the vehicle and possibly the wheels. NOT and anti jacking sensor and can be subject to false alarms due to high sensitivity.

Operation

Electro-Mechanical activation: Sensor detects any vibration exerted upon the vehicle. An intruder is detected when the vibration exceeds the set level.
Adjustable sensitivity: Sensor allows installer to adjust sensitivity to provide compatibility with different size vehicles.
Vibration Protection: Shock sensors will protect glass. Intruder attempting to interfere with either items will exert vibration upon the vehicle.
Temperature compensating circuitry: Ensures sensitivity does not change as ambient temperature rises or falls.
Plug and play for service: Designed to allow easy access for service technicians. Plugs and sockets are located inside the main control module to protect against access by thieves.
Compatability
Compatible with: DYNATRON alarm control systems only
Visual Output
Trigger status indicator: LED indicator shows when sensor is triggered.
Specifications
Super low current draw: 1.3mA when idle, 13mA when triggered for 2 seconds.
Wide Operating voltage: Operating voltage +9VDC to +15VDC.
Operating temperature: -20 degrees to +85 degrees for equipment designed to be installed within vehicle cabin.
Polarity protection: The system circuitry is design to protect itself against accidental battery polarity reversal. This can happen when replacing the vehicle battery.
Trigger output rating: Each output of the sensor can sink 300mA, suitable for energising a relay coil when necessary.
Trigger output is back EMF protected:   Clamping diode protects the output driver transistor(s) to stop damage from the super high voltages that occur when a relay coil is released.
Limitations:

False alarms are possible if sensitivity is too high, cats jumping on bonnet or passing traffic could trigger sensor. Adjust when necessary, or else look at the Dual zone logic controlled sensor.
Power Consumption: Each additional sensor added to a system will increase it's over-all power consumption from the car battery. See the list of each sensor's power consumption.

Warranty (Return to Base)
Manufacturers warranty on Sundry items: Guarantees accessories are free from manufacturing defects for 12 months from time of purchase.
Manufactured to ISO9001. Built within world standard production facility.
