Fleet Commander

GPS Fleet Management Vehicle Tracking.

Monthly Subscription includes:

WEB Hosting, PC and Smartphone Access, GSM SIM Data Card and a Full Service Contact (Min 12 month Term)



---

Description

A Comprehensive Real Time Tracking and Fleet Management Platform:

Multi Level Access vis WEB browser or Smartphone interface

Full Reporting suite including Journey, Travel and Idle time; Business and Private Use; Fringe Benefit Tax; Road User Charges; Speeding and Harsh Braking or Acceleration; Start, Finish and ignition on/off; Geofence and points of interest.

All overlay to the most recent maps with hybrid and Satellite options detailing street view as well as time, address, speed and direction of travel.

Full screen displays with unlimited downloads for the last 90 days and able to be exported into PDF or XL format.

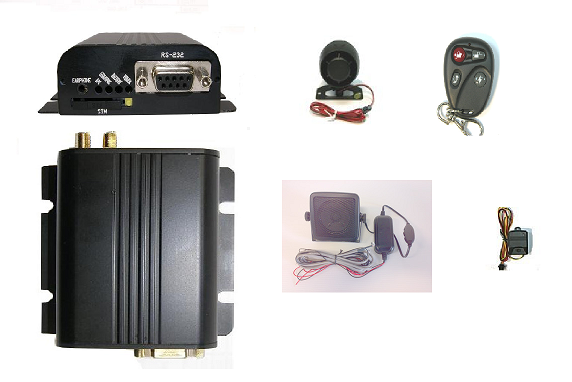

AVL202 is an economical tracking device that includes powerful features critical to real time tracking in the car security, asset management, monitoring and fleet management applications.

AVL202 supports third party software systems including a seamless integration with iTrack123 AVL web solution which supports multiple map sources and multiple device driver support for future upgrades.

 ·           Quad band 850/900/1800/1900 MHz GSM

·           40+ Channel GPS module at 5-10m accuracy.

·           GPRS multi-slot class 10 & mobile station class B

·           Supports time interval or distance based reporting.

·           Real-time status monitoring with custom wiring

·           6 x digital I/O ports; controllable via SMS/GPRS

·           RS232 port for GPS output & programming

·           Inbuilt power management functions

·           Internal rechargeable 1100 mAh battery backup

·           4 LED indicator for Power, Battery, GSM/GPRS, GPS Status

·           Compact Size for covert placement : 85 x 62.5 x 28mm

·           Easy installation and field tested for reliability.

·           Time-based or distance-based message reporting

·           System parameters reporting and remote settings

·           Monitoring digital inputs, alert sensing and reporting

·           Remote digital output controls of external field devices

·           1 user defined geo-fences, alerting sensing, local triggering and reporting

·           1 user defined over-speeding, alerting sensing and reporting

·           RS232 comm. Port to provide GPS readings and programming

·           Over-The-Air firmware support

·           Programming Interface cable set.

·           Interface drivers to support standard Peripheral Device Options below.



- 1 x AVL202 tracking unit with internal 1100 mAh battery

- 1 x GSM antenna

- 1 x GPS antenna

- 1 x cable assembly for power and I/O wiring

- User Guide booklet & Firmware Program downloadable via Internet.

- 12 month manufacturer RTB warranty



GSM/GPRS Specifications

Description	Specification
GSM Frequency	QUAD Band 850 / 900 / 1800 / 1900 MHz
Output Power	Class 4 (2W) for EGSM 850 and 900 MHz Class 1 (1W) for GSM 1800 and 1900 MHz
Protocol Support	TCP/UDP/HTTP/FTP/SMTP/POP3/PPP
GPRS Multi-slot	Class 10
GPRS Mobile Station	Class B
Downlink	Maximum 85.6 kbps
CSD	Up to 14.4 kbps
Coding Scheme	CS1, CS2, CS3, CS4
PBCCH support	Yes
USSD support	Yes

 GPS Specifications

Description	Specification
Transmission data	NMEA 0183 Ver 3.01
Receiver Channels / Fix	40+ Channels
Tracking sensitivity	-158 dBm
Receiver frequency	1575.42 Mhz L1 C/A Code
Accuracy (1) Position (2) Datum	5m CEP WGS-84 (default)
TTFF (Time to first fix) (1) Reacquisition (2) Cold start (3) Warm start (4) Hot start	1 Sec 45 Sec (typical) 35 Sec (typical) 1 Sec (typical)



Mechanical Specifications



Description	Specification
Dimensions	85 (L) x 62.5 (W) x 28 mm (H)
Weight	110 gm.
