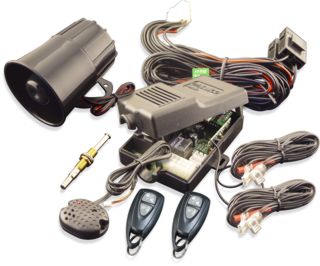

D3600 Alarm Immobiliser AS/NZS Certified 4 Star - Best Price Guarantee

Arming procedure while ignition is off:

The system will arm immediately if the main button of a valid remote control is momentarily pressed, the doors will lock and all security functions will become active.

Disarming procedure:

The system will disarm when the main button of a valid remote control is pressed

Auto Arming feature:

The immobiliser will automatically immobilise the engine 39 seconds after the engine has stopped, if the vehicle is left untouched.

Two independent circuits of Immobilisation:

40 Amp rated, normally open contacts.

Automatic immobilisation:

39 seconds after ignition switch is turned off.

Safety circuitry in case of power failure:

System sources alternate power from ignition if main power is lost.

On-board relays:

Protection against harsh road conditions: All relays are fully encapsulated to provide protection against dust and moisture

Remote Controls

Rolling code encoder:

With over 18,000,000,000,000,000,000+ code combinations, transmitting via 433MHz PWM RF signal.

Large system memory:

Allows system to track seven remote controls.

Two polycarbonate remote controls:

Controller re-programming: Service technician can delete lost or stolen controllers from memory.

Wiring

Security wiring:

All cables extending from the module are black and same diameter.

Plug and play for service:

Designed to allow easy access for service technicians

Security Housing

Connector plug:

Is enclosed within module case to prevent access by thief.

Stealth wiring:

Cutting any immobilisation wiring will still leave the car secure.

Override

Emergency Personal Identification Number override:

Enter the secret four digits to override the immobiliser .

PIN card:

Secret override PIN is supplied on handy 90mm x 50mm card.

Visual Output

Bright red dash LED:

This LED flashes to inform user when system is armed. The LED is mounted on the driver's side dash and is visible from outside the window.

Arm/Disarm confirmation:

System flashes car indicators when arming or disarming.

Alarm illumination:

System flashes car indicators when thief triggers alarm.

Audible Output

Dynatron Siren:

115Bd Negative siren output

Arm/Disarm confirmation:

Optional.

Intrusion Detection

Optional sensors for the D3600 Series

Doors, bonnet and boot monitoring:

Triggers alarm system if intruder opens any protected entry point in vehicle.

Standard: Glassbreak Sensor:

Digital oscillating Quartz sensor to detect the frequency of breaking glass.

Optional plug-in Ultra-Sonic sensor:

Sensor produces a 40KHz sound wave and measures echo to detect intruder.

Optional plug-in single zone Microwave sensor:

Sensor produces a microwave field to detect intruder.

Optional plug-in Dual Zone Microwave sensor:

Sensor produces two microwave fields, exterior field to warn away, interior to trigger alarm fully.

Optional plug-in single stage shock sensor:

Sensor measures vibration subjected to vehicle to detect intruder.

Optional plug-in two stage Shock Sensor:

Sensor measures two levels of shock, soft shock to sound warn away, heavy shock to trigger alarm fully.

Optional Plug-in Tilt Shock Sensor:

Dual Tech sensor measures vehicle angle with respect to set point and triggers if angle changes. Full response added to detect impact.

Central Locking

System can trigger factory central locking, aftermarket central locking or central locking relays.Extend pulse length to drive pneumatic central locking systems (Mercedes).

Automatic re-locking:

System will re-arm and re-lock doors if previously disarmed by remote control and doors remain closed.

Anti-hijacking protection:

System locks doors when ignition is turned on, unlocks when ignition is turned off.

Dual stage unlock:

Allows user to unlock driver's door before unlocking all other doors.

Convenience Functions

Panic / Car Finder:

Press and hold second button of remote control to cause siren to sound and indicators to flash.

Courtesy light switch activation:

System switches courtesy light on for 30 seconds or until ignition switch is turned on, when disarmed.

Electronic boot release. (Optional):

Press and hold the secondary remote control button, while system is disarmed, to activate boot release output. The indicators will flash four time each time the boot release signal is sent.

Warranty (Return to Base)

Manufacturers warranty on Control module:

Guarantees control module is free from manufacturing defects for 3 years from time of purchase.

Manufacturers warranty on Sundry items:

Guarantees remote controls, siren and sundry items are free from manufacturing defects for 12 months from time of purchase.

Standards Compliance

Australian & New Zealand Standard for vehicle Immobilisers.

AS/NZS 4601:1999.

Australian & New Zealand Standard for Intruder alarm systems - Road vehicles - Performance requirements.

AS/NZS 3749.1:2003 Class B.

Manufactured in ISO9001 facility:

Built within world standard production facility:
